PCIEC4L-MA4

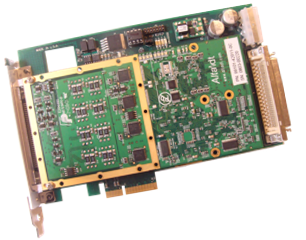

Alta Data Technologies’ PCIEC4L-MA4 interface module is a multi-channel, multi-protocol 1553 and ARINC ½ size PCI Express 4 Lane interface card (PMC on 4 Lane PCI Express Carrier) is supported by the latest software technologies.

Contact Support
Request Quote
PCIEC4L-MA4 Data Sheet PCIEC4L-MA4 Data Sheet
Alta Data Technologies’ PCIEC4L-MA4 interface module is a multi-channel, multi-protocol 1553 and ARINC ½ size PCI Express 4 Lane interface card (PMC on 4 Lane PCI Express Carrier) is supported by the latest software technologies. The PCIEC4L card is based on the industry’s most advanced 32-bit FPGA protocol engine, AltaCore™, and by a feature-rich application programming interface, AltaAPI™, which is a multi-layer ANSI C and Windows .NET (MSVS 2005/08/10 C++, C#, VB .NET) architecture. This hardware and software package provides increased system performance and reduces integration time.
Last updated November 13, 2018
Overview
  • 1-5 Independent, Dual Redundant MIL-STD-1553 Channels, Optional 8 ARINC Channels. PMC on PCIe 4x Lane Carrier.
  • Dual Function 1553 (BC/Mon or mRT/Mon) or Full Function (BC/mRT/Mon)
  • - 4 Shared TX/RX & 4 Dedicated RX
  • 512 Kbyte RAM per 1553 Channel and for ARINC Channels
  • ARINC – 8 Channels Total:
  • **Capture 1553 & ARINC Waveforms**

Alta Data Technologies’ PCIEC4L-MA4 interface module is a multi-channel, multi-protocol 1553 and ARINC ½ size PCI Express 4 Lane interface card (PMC on 4 Lane PCI Express Carrier) is supported by the latest software technologies.  The PCIEC4L card is based on the industry’s most advanced 32-bit FPGA protocol engine, AltaCore™, and by a feature-rich application programming interface, AltaAPI™, which is a multi-layer ANSI C  and Windows .NET (MSVS 2005/08/10 C++, C#, VB .NET) architecture.  This hardware and software package provides increased system performance and reduces integration time.

AltaCore-1553 is guaranteed 1553B Notice II & IV compliant and all cards are manufactured to the highest IPC-Level 3 standards and ISO 9001:2008 processes. Cards are available in dual-function (BC/Mon or multi-RT/Monitor) or full-function (BC, mRT and Mon) configurations. Playback and Signal Generation are part of BC operations. Alta is committed to a risk free integration and will be glad to help with any level of your system development.

China RoHS ROHS
Specifications

Key Features

  • 1-5 Independent, Dual Redundant MIL-STD-1553 Channels, Optional 8 ARINC Channels. PMC on PCIe 4x Lane Carrier.
  • Dual Function 1553 (BC/Mon or mRT/Mon) or Full Function (BC/mRT/Mon)
  • - 4 Shared TX/RX & 4 Dedicated RX
  • 512 Kbyte RAM per 1553 Channel and for ARINC Channels
  • ARINC – 8 Channels Total:
  • **Capture 1553 & ARINC Waveforms**
  • First 1553 Channel & First Two ARINC RX Channels
  • 8-bit, 50 nSec for 1553 – 1 uSec for ARINC A/D for Voltage Measurements
  • Channels May be Factory Configured to fix ARINC RX/TX or Monitor Only 1553.
  • Advanced BC & ARINC TX Frequency Controls: 1553 Framing/Subframing;
  • RT/ARINC RX Full Buffering with 64-bit 20 nsec Time Tags
  • Advanced, Multi-layer AltaAPI Provided at No Cost with Source Code
  • Windows, Linux, RTOS, LabVIEW & RT
  • .NET Managed DLLs
  • Contact Factory for Latest RTOS Support
  • True HW Playback (BC or TX)
  • Industry First: 20/1000 ns Signal Generation
  • Bit Construction
  • Supports RT or ARINC Validation Testing
  • IRIG-B RX PAM or RX/TX PPS Ext Clock
  • Avionics/ RS-485 Discretes
  • Advanced BIT Features and Dual Temperature Sensors
  • Full HW Interrupt Features
  • PCI 32 Bit, 33/66MHz & PCI-X Compatible
  • NOTE: On shared channels: TX lines have an extra RX load; when powered-off, RX channels can have severe voltage drain – use only dedicated RX channels for critical systems.
Documents

Here you can find documentation pertaining to the PCIEC4L-MA4. For additional documentation and software, please visit our secure download area.

Title Size Type
PCIEC4L-MA4 Data Sheet 463.99 KB PCIEC4L-MA4 Data Sheet
AltaAPI Data Sheet 257.55 KB AltaAPI Data Sheet
AltaView Data Sheet 520.48 KB AltaView Data Sheet
PMC-MA4 Data Sheet 439.66 KB PMC-MA4 Data Sheet
SCSI 1553 Connector and Cable Assembly 351.27 KB SCSI 1553 Connector and Cable Assembly
Software

AltaAPI
Alta’s 1553 and ARINC cards include the most advanced Application Programming Interface (API) library tools in the avionics industry, AltaAPI. The API architecture is a properly OSI modeled development package that provides an extremely flexible design to provide quick porting to various operating systems (such as VxWorks 5.X/6.X/7/MILS, Integrity, LynxOS RTOS), Linux 32- and 64-bit, Solaris 10, LabVIEW and 32- and 64-bit Windows 7/8/8.1/10.

AltaAPI-LV
Most of Alta’s MIL-STD-1553 & ARINC products include the industry’s most advanced National Instruments’ LabVIEW™ & RT Support Tools, AltaAPI-LV. Built-in native NI LabWindows™ environment and PCI VISA drivers, Alta’s AltaAPI-LV provides a unified NI tool for easy integration to LabVIEW, RT, and LabWindows™ applications. Easily port native DLLs for Testbench or VIs for Veristand.

AltaRTVal
AltaRTVal provides the most advanced MIL-STD-1553 COTS protocol validation tool in the industry, and helps prepare for Test Systems Inc Full SAE 4111 Validation. The software implements protocol tests for both the SAE AS4111 RT Validation Test Plan and the SAE AS4112 RT Production Test Plan. Ideal for testing new software revisions of current designs or manufacturing production units.

AltaView Bus Analyzer
Alta’s Windows avionics analyzer product, AltaView, provides the most modern technologies for MIL-STD-1553 and ARINC-429 network activity and data analysis. Win XP/Server/7/8/10 Compatible and VMware with ENET/NLINE Ethernet. Ideal for Cybersecurity Testing.

No Seat License or Dongles - Unlimited Software Updates

Part Numbers
  Part Number Description
PCIEC4L-MA4-1D8-T PCI Express (PMC on 4 Lane Carrier) with One Channel of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-2D8-T PCI Express (PMC on 4 Lane Carrier) with Two Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-3D8-T PCI Express (PMC on 4 Lane Carrier) with Three Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-4D8-T PCI Express (PMC on 4 Lane Carrier) with Four Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-5D8-T PCI Express (PMC on 4 Lane Carrier) with Five Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-1F8-T PCI Express (PMC on 4 Lane Carrier) with One Channel of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-2F8-T PCI Express (PMC on 4 Lane Carrier) with Two Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-3F8-T PCI Express (PMC on 4 Lane Carrier) with Three Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-4F8-T PCI Express (PMC on 4 Lane Carrier) with Four Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
PCIEC4L-MA4-5F8-T PCI Express (PMC on 4 Lane Carrier) with Five Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: Thumb Screw SCSI I/O Connector (Must Use -T Series Mating Connector) and AltaAPI Software.
Options Example: PCIEC4L-MA4-5F8-ABT
-A AltaView SW Full Functionality Enabled
-B RT Validation SW Enabled (Two Channel+
-D Direct Coupling (Price Per Channel)
-E Extended Temp (-40 to 85 Indust Components)
-I Tx Inhibit (BM Function Only)
-N NVRAM Write Disabled
